Babbitt chainwheel technical data

Use the charts to help you measure which babbitt product best fits your needs!

To download our technical data sheet, click here.

Click here to download our catalog in English and click here to download our catalog in Spanish.

SELECTION OF CHAINWHEEL OPERATORS

Valve Handwheel Outside Diamater Range, Inches (cm)
Chain Operator Number
Wheel Outside Diameter, Inches (cm)
Uses Chain Trade Size
Weight of Standard Wheel, Pounds
2 to 4 (5.08 – 10.16)
0
4 (10.16)
2
2
4-1/4 to 5-3/4
1
5-3/4 (14.61)
1/0
4
6 to 7-1/2 (15.24 – 19.05)
1-1/2
7-1/2 (19.05)
1/0
5
7-3/4 to 9 (19.69 – 22.86)
2
9 (22.86)
1/0
10
9-1/4 to 12-1/2 (23.50 – 31.75)
2-1/2
12 (30.48)
4/0
15
12-3/4 to 15-1/2 (32.39 – 39.37)
3
15-1/2 (39.37)
4/0
18
15-3/4 to 19 (40.01 – 48.26)
3-1/2
18-1/2 (46.99)
4/0
28
19-1/4 to 22 (48.90 – 55.88)
4
21-1/2 (54.61)
5/0
37
22-1/2 to 26 (57.16 – 66.04)
4-1/2
25-3/4 (64.41)
5/0
47
26-1/4 to 30 (66.68 – 76.20)
5
30 (76.20)
5/0
58
30-1/4 to 36 (76.20 – 91.44)
5**
30 (76.20)
5/0
58

**Special attachment clamps for #5 wheel will accommodate up to 36″ valve handwheel

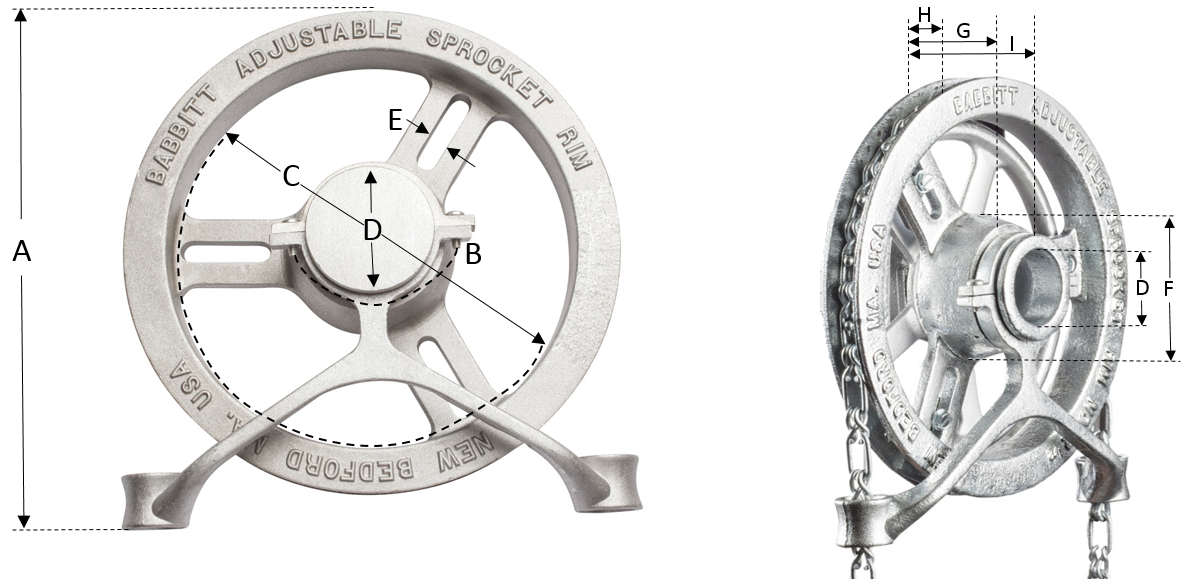

CHAINWHEEL DIMENSIONS

Chain Wheel Size # 0 1 1-1/2 2 2-21/2 3 3-1/2 4 4-1/2 5
A – Overall height In 4-5/8 (11.75) 6-3/8 (16.19) 7-3/4 (19.69) 10-1/2 (26.67) 12-1/2 (31.75) 15-1/2 (39.37) 18-1/2 (46.99) 21/1/2 (54.61) 25-3/4 (65.41) 30-1/4 (76.84)
B – Inner Bolt Circle 1-1/2 (3.81) 2-1/2 (6.35) 3-1/2 (8.89) 4-1/2 (11.43) 5-1/2 (13.97) 8-1/2 (21.59) 11-1/2 (29.21) 11-1/2 (29.21) 14-1/2 (36.83) 18-3/4 (47.63)
C – Outer Bolt Circle 1-7/8 (4.76) 3-1/2 (8.89) 5 (12.70) 6-5/8 (16.83) 9-1/4 (23.50) 12-3/8 (31.43) 15-1/2 (39.37) 17-3/4 (49.05) 21-1/4 (53.98) 25-1/4 (65.14)
D – Hub Opening (Diameter) 1/2 (1.27) 7/8 (2.22) 7/8 (2.22) 2-1/8 (5.40) 2-1/8 (5.40) 2-1/8 (5.40) 3 (7.62) 3 (7.62) 3 (7.62) 3 (7.62)
E – Slot Size (Width) 1/4 (.25) 3/8 (.95) 3/8 (.95) 3/8 (.95) 7/16 (1.11) 7/16 (1.11) 7/16 (1.11) 5/8 (1.59) 5/8 (1.59) 5/8 (1.59)
F – Rear Opening 3/4 (1.91) 1-1/2 (3.81) 1-7/8 (4.76) 3-1/8 (7.94) 3-1/2 (8.89) 3-1/2 (8.89) 4-7/8 (12.38) 4-7/8 (12.38) 4-5/8 (11.75) 4-3/4 (12.07)
G – Hub Depth (Shoulder to Rear) 1-1/8 (2.86) 1-1/2 (3.81) 1-7/16 (3.65) 1-3/8 (3.49) 1-3/4 (4.45) 1-7/8 (4.76) 1-7/8 (4.76) 1-7/8 (4.76) 1-7/8 (4.76) 2 (5.08)
H – Rim Thickness 7/8 (2.22) 1-1/8 (2.86) 1-1/8 (2.86) 1-1/8 (2.86) 1-1/4 (3.18) 1-1/4 (3.18) 1-1/4 (3.18) 1-1/2 (3.81) 1-1/2 (3.81) 1-1/2 (3.81)
I – Overall Depth 1-3/4 (4.45) 2-1/4 (5.72) 2-3/8 (6.03) 2-3/8 (6.03) 2-5/8 (6.67) 3-1/8 (7.94) 3-1/8 (7.94) 3-1/8 (7.94) 3-1/8 (7.94) 3-1/8 (7.94)

LENGTH OF CHAIN REQUIRED

Chain Wheel Size # Length In Feet
0 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 1 FOOT
1 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 1 FOOT
1-1/2 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 2 FEET
2 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 2 FEET
2-1/2 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 2 FEET
3 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 2 FEET
3-1/2 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 4 FEET
4 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 4 FEET
4-1/2 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 4 FEET
5 [(DROP FROM VALVE STEM MINUS 3 FEET) X 2] PLUS 4 FEET

HAMMER-BLOW SPECIFICATIONS

Chain Wheel Size Weight Combined Assembly, Pounds Diameter of Valve Wheels Assembly Will Fit, Inches (cm)
2 14 7-3/4 to 9 (19.7 – 22.9)
2-1/2 21 9-1/4 to 12-1/2 (23.5 – 31.8)
3 31 12-3/4 to 15-1/2 (32.4 – 39.4)
3-1/2 43 15-3/4 to 19 (40 – 48.3)
4 58 19-1/4 to 22 (48.9 – 55.9)
4-1/2 70 22-1/4 to 26 (56.5 – 66.0)
5 118 26-1/4 to 30 (66.7 – 76.2)
5** 118 30 – 36 (66.7 – 76.2)

**Special attachment clamps for #5 wheel will accommodate up to 36″ valve handwheel

TYPICAL CHAINWHEEL SPECIFICATIONS:

Approved chainwheel operators shall be manufactured by Babbitt Steam Specialty Co. and shall include chainwheel and chain guide for ___ inch diameter valve handwheel. Chainwheel shall be made of (cast iron/ductile iron/malleable iron/aluminum/bronze). Rim shall contain as an integral part of the casting a groove into which the chain guide attaches. Chain guides shall be made of (ductile iron/aluminum/bronze). Chainwheels shall be adjustable and detachable, furnished complete with (steel/stainless steel) attachment sets for attachment of chainwheel to valve handwheel. Units shall be coated with (black enamel, galvanized, Teflon, epoxy or ___) to meet manufacturer’s specifications. Operators shall also be furnished with ___ feet of lock-link (hot dipped galvanized/spark-resistant brass/stainless steel) chain. Ductile iron units (shall be/shall not be) Babbitt “Hammer-blow” configuration. Chainwheel operators (shall be/shall not be) Safety Wheel configuration.
